Noritsu QSS-3102-2 Digital


Printing version

   At PMA 2005, a 4 day event held from the 20th to the 23rd of February in Orlando, Florida USA, Noritsu Koki is proud to display the QSS-3102-2Digital, which is a new digital minilab from the high capacity QSS-31 series.

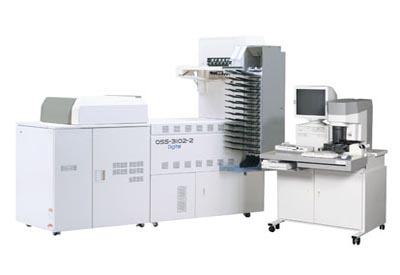

Noritsu QSS-3102-2 Digital

   In addition to its high capacity from film, the equally high capacity from digital media is a welcome feature as digital images continue to play an increasingly significant role in the market. Furthermore, extensive media support, improved correction functions, advanced network features and many other attractive features make the QSS-3102-2Digital the perfect solution for your present and future high capacity printing needs.

Main Features

   Outstanding Capacity From Film and Media
   The QSS-3102-2Digital boasts an amazing capacity of approximately 2,470 prints per hour (3R 127 x 89mm). This same capacity can be achieved from both film input and digital media input, enabling you to meet the demand for high capacity printing from both analog and digital sources.
The actual capacity you achieve may be different.

   Comprehensive Media Support with the Addition of a Multi Drive Unit (Option)
   Adding a Multi Drive Unit provides support for virtually every type of digital camera media on the market today. Furthermore this drive’s user-friendly layout, in which media slots are positioned in one easy-to-locate row with replica media images above each slot, makes it easy to quickly find the appropriate slot.

   Image Correction Improvements
   Many of the original digital correction features that have been available with previous QSS minilabs have been improved upon, and several new high-precision correction features have been added. Some of the QSS-3102-2Digital’s advanced corrections include the following.
DIGITAL ICE TM (Standard) and Noritsu Koki’s Digital Masking (Option) are used to provide thorough correction of dust and scratches on film. There also are new features that correct JPEG block, lens aberration, chromatic aberration, graininess in underexposed images, and brightness in the edge of the image field. These and other corrections help to assure high quality prints that will satisfy even the most demanding customers.

   Easy Operation / Easy Maintenance
   This minilab has the same GUI as other QSS digital minilabs, making operation easy for QSS users as well as beginners. Furthermore, a minimal amount of time is required for daily setup. This and other convenient features like the dual paper magazine system, 13 tray print order sorter, automatic water replenishment and automatic washing of the turn racks help to reduce labor requirements and provide an efficient workflow.

   High Quality Scanner
   The QSS-3102-2Digital film scanner has an LED light source that provides consistent scanning of a wide variety of film and requires minimal maintenance. Several film carriers are available, including the versatile Multi Film Carrier which supports 135, IX240, 110, and 120 film.

   State-of-the-Art Laser Engine
   The QSS-3102-2Digital is equipped with a laser engine that employs Noritsu Koki’s multi-paper-matching technology to make high-quality prints of 300dpi on both digital paper and conventional photographic paper.

   Maximum Print Size of 12 x 18 Inches
   The QSS-3102-2Digital is capable of producing vivid prints in a variety of formats up to 305mm x 457mm (12 x 18 inches).

   A Lineup of Options that Increase Productivity
   Many unique options are available to help increase efficiency, including the Negative and Positive Film Sleever and the Film Set Feeder.

   Network Construction
   The QSS-3102-2Digital has an array of optional network components, which can be installed to enhance the workflow and increase the variety of digital services provided. Some of the services that can be provided with a network include CD-R writing, Image editing, Additional value prints, and Image storage.

Specifications
Film Formats 110, 135, IX240, 120
Film Types Color negative and positive (including mounted), B&W negative (Chromogenic B&W), sepia negative
Input Media
Standard
FD, CD-ROM, CD-R, CD-RW
Optional

MO, Zip, DVD-RAM, DVD-ROM, CompactFlash, Microdrive, SmartMedia, PC Card, SD Card, mini SD Card, MultiMediaCard, Memory Stick, Memory Stick PRO, Memory Stick DUO, Memory Stick PRO DUO, xD-Picture Card, USB Flash Drive, Prints (from Flatbed Scanner)

Output Media
Standard
FD
Optional CD-R, CD-RW, MO, Zip, DVD-RAM, CompactFlash, Microdrive, SmartMedia, PC Card, SD Card, mini SD Card, MultiMediaCard, Memory Stick, Memory Stick PRO, Memory Stick DUO, Memory Stick PRO DUO, xD-Picture Card, USB Flash Drive
Estimated Processing Capacity
  Print size
Width x Paper advance length
Processing Capacity
(prints/hr)
135 Negative Film (24 exp.) W127 x 89mm (5 x 3.5 inches) Approx. 2,470
W152 x 102mm (6 x 4 inches) Approx. 2,300
W203 x 254mm (8 x 10 inches) Approx. 640
W305 x 457mm (12 x 18 inches) Approx. 370
IX240 Negative Film (25 exp.) 89mm (3.5 inches) paper width
(C,H,P intermixed)
Approx. 1,640
Digital Camera (2.5 megapixels) W127 x 89mm (5 x 3.5 inches) Approx. 2,470
W152 x 102mm (6 x 4 inches) Approx. 2,300
W203 x 254mm (8 x 10 inches) Approx. 640
W305 x 457mm (12 x 18 inches) Approx. 370
Calculated according to our criteria. The actual capacity you achieve may be different.

Release The second quarter of 2005.
